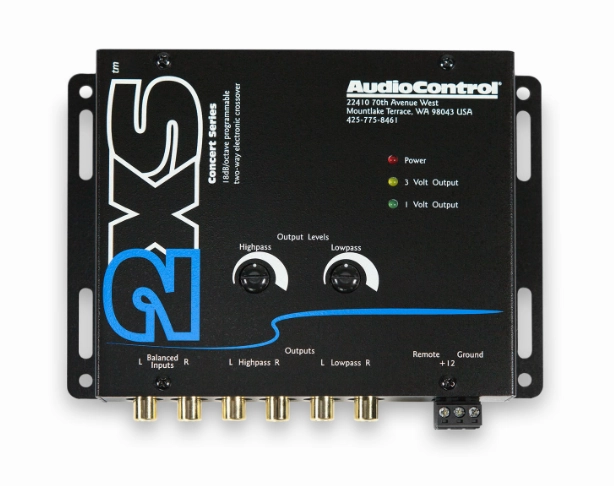

2XS
2-Way Electronic Crossover
A state-variable, 18dB/octave, 2-way electronic crossover designed with a flexible and accurate module-programmable crossover frequency. Our exclusive Programmable Frequency Match (PFM) subsonic filter provides exceptional bass control. Winner of the coveted CES “Design and Engineering Excellence Award.”
Features
- Two channel operation
- Precise 2-way 18dB/octave, programmable electronic crossover with a plug-in module
- Programmable Frequency Match (PFM) subsonic filter
- Balanced inputs
- On-board line driver for signal gain
- Output level controls
- Selectable ground isolation
- Optimum signal output indicator LEDs
- The finest quality – designed and built in America
Specifications
Inputs
- Preamp Inputs: 1 (2 channels)
Outputs
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms
Performance
- Total Harmonic Distortion: 0.005%
- Frequency Response: 15Hz-20kHz ±1dB
- Signal to Noise: 115dB at full output
- Crossover Type: 18dB/octave
- Crossover Frequency: 90Hz from factory (user programmable)
Control
- Remote In
General
- Power Supply: Transformer Isolated PWM
- Current Draw: 150mA
- Recommended Fuse Rating: 1A
Weights & Dimensions
- Dimensions: 5.5″W x 4.65″D x 1.15″H
- Weight: 2.0lbs (0.91kg)
In the box: 2XS, , Manual, Warranty
Downloads
Building Modules
Crossover Networks From A To Linkwitz-Riley
Full Line Catalog
User Manual
