Feature:

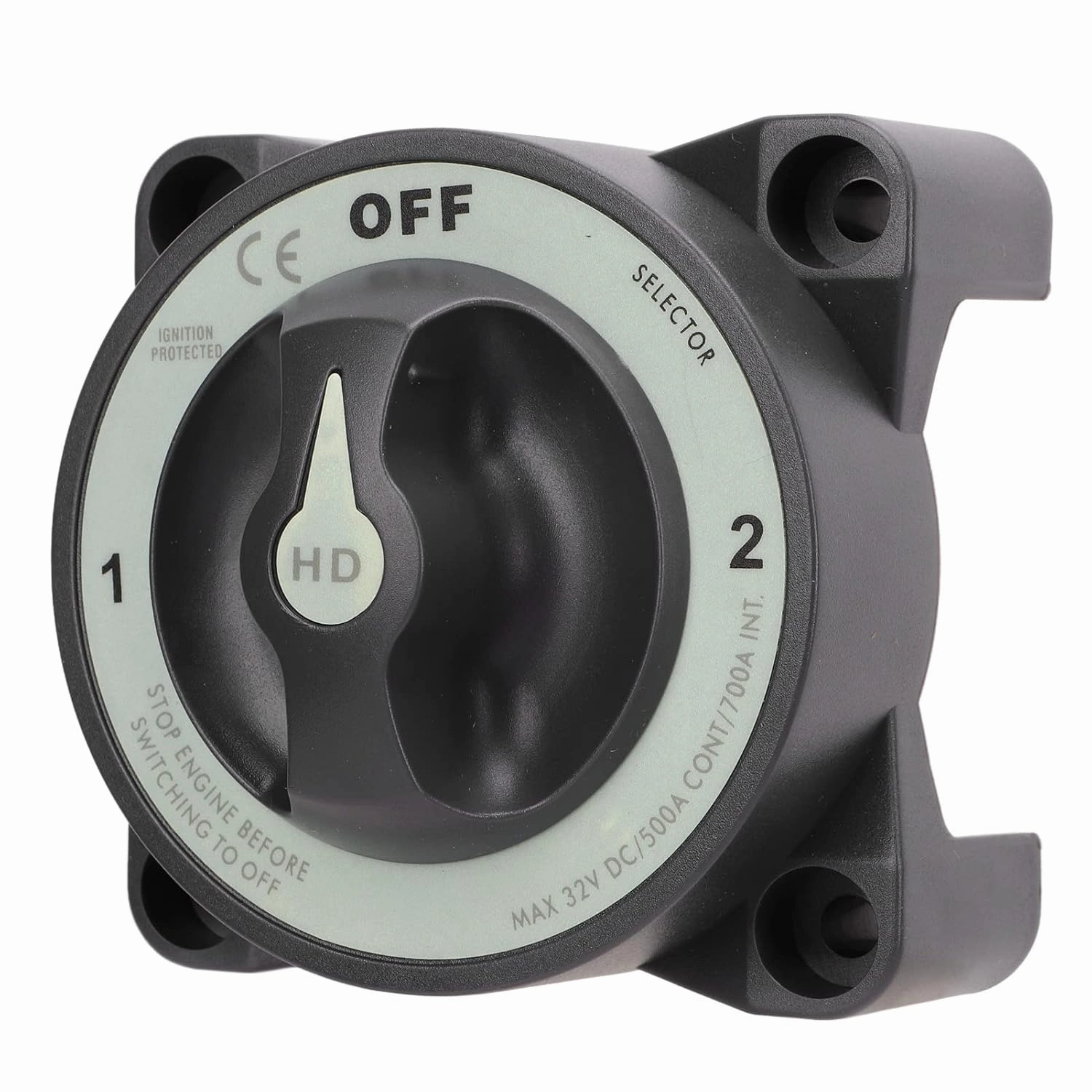

1. 3 Position Battery Selector Switch: Switches a single battery to a single load group. Includes AFD (Alternator Field Disconnect).
2. Marine Boat Use: IP66 waterproof rating against powerful water jets; ignition protected, to install on gasoline powered boats.
3. Conductive Tinned Copper Studs: Accepts battery cables up to 4/0 AWG and studs accept 1/2in () ring terminals. 7/8in (22mm) stud length accepts multiple cable terminations.
4. Flexible Installation: Enclosure design allows for , rear panel or front panel mounting options; tactile indicators sense knob position.
5. Wide Application: Battery switches are ideal for marine, RV, gasoline powered boats, battery applications and also for electrical equipment.

Specification:
Item Type: Battery disconnect switch
Material: ABS, copper
Selector: 3 Position
Continuous Rating: 500A
Intermittent Rating: 700A (5min)
Start Rated 30 Seconds: 1600A
Maximum Working Voltage: 32VDC
Terminal Size:
Class: IP66
Switch Position: OFF, 1, 2
Inner Stud: Tinned copper
Application: Ideal for marine or RV applications

Package List:
1 x Battery Switch

• Package Dimensions ‏ : ‎ 4.09 x 4.06 x 3.46 inches; 1.19 Pounds
• Date First Available ‏ : ‎ September 1, 2022
• Manufacturer ‏ : ‎ Acouto
• Country of Origin ‏ : ‎ China
