Flipsky ESC 100A FSESC 6.9 Electronic Speed Control Based on VESC 6 with Heat Sink for E-skateboard
| Hardware | V6.9 |
| Firmware | fw5.2 |
| Instantaneous current | 100A continuous / 200A peak |
| Voltage | 8V-60V (Cells: safe for 3-12S LiPo) |
| BEC type | Internal driver support |
| Frequency | PWM input |
| Reverse | Yes |
- Firmware: FW 5.2
- Continuous current: 100A; instantaneous current: 200A
- Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
- BEC: 5V@1A
- ERPM: 150000

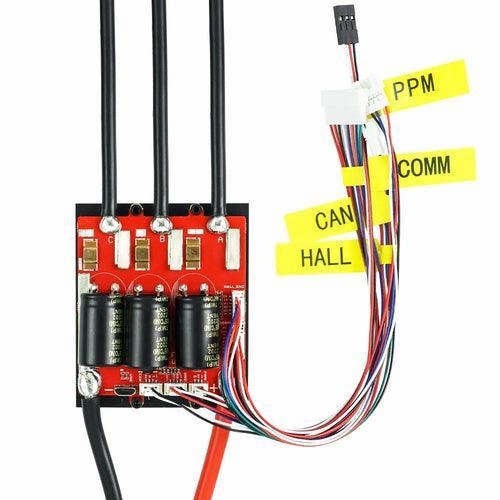

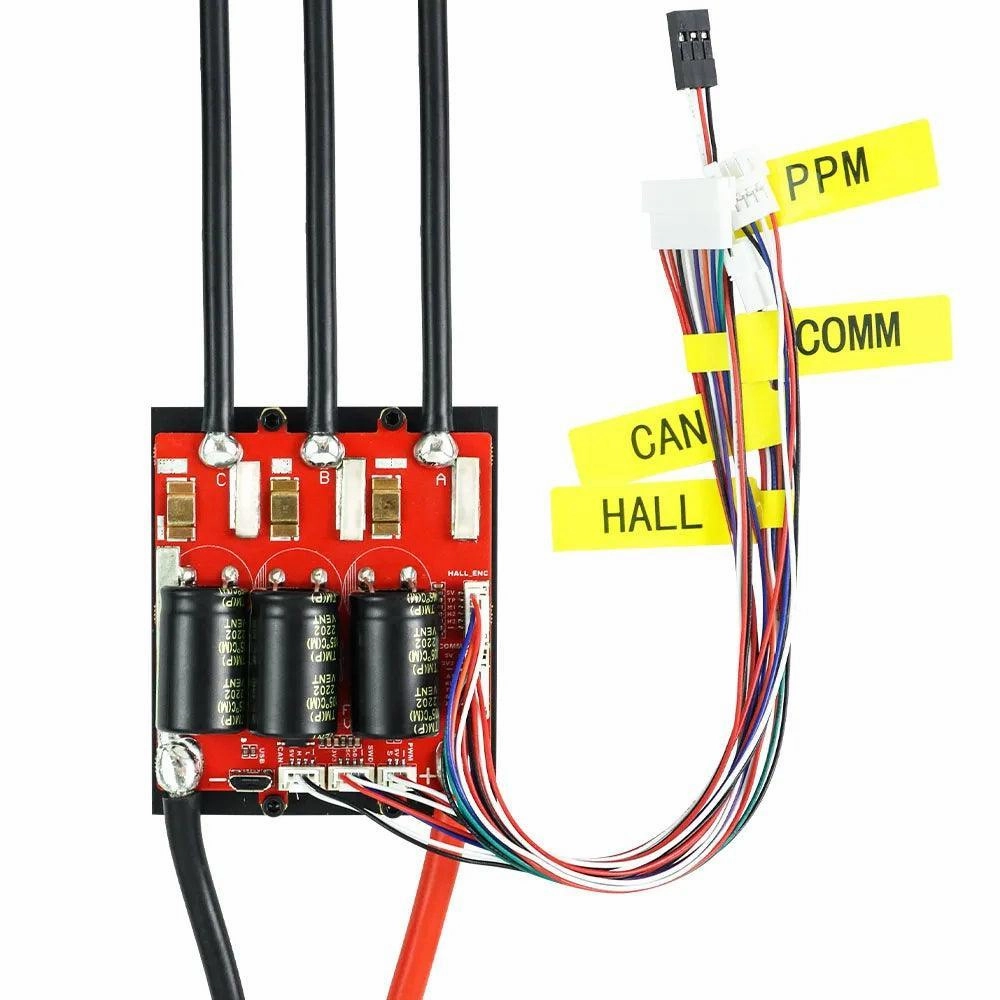

- Control Interface Ports:USB,CAN,UART
- Supported Sensors:ABI,HALL,AS5047,AS5048A
- Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
- Modes:DC, BLDC, FOC (sinusoidal)
- Regenerative capacity: Yes
- Programmable: Yes
- Motor wire: 10AWG
- Power cable:8AWG

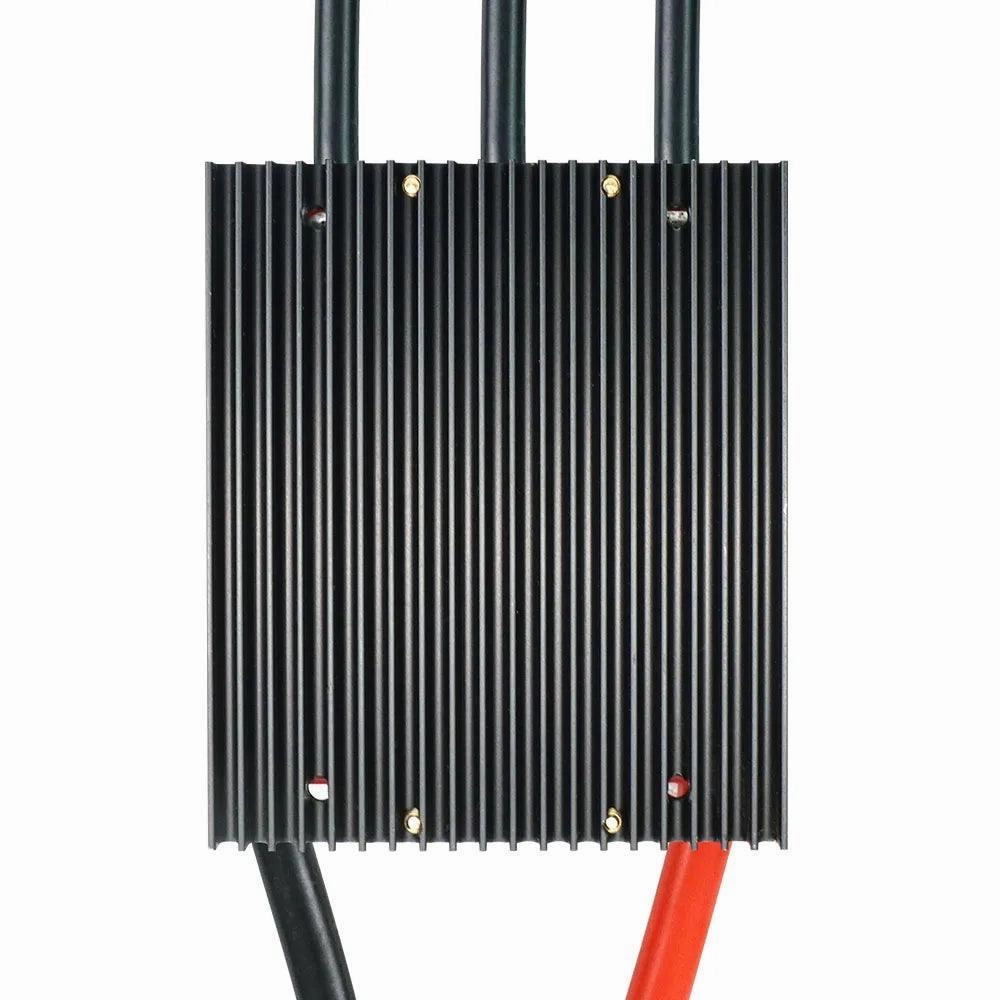

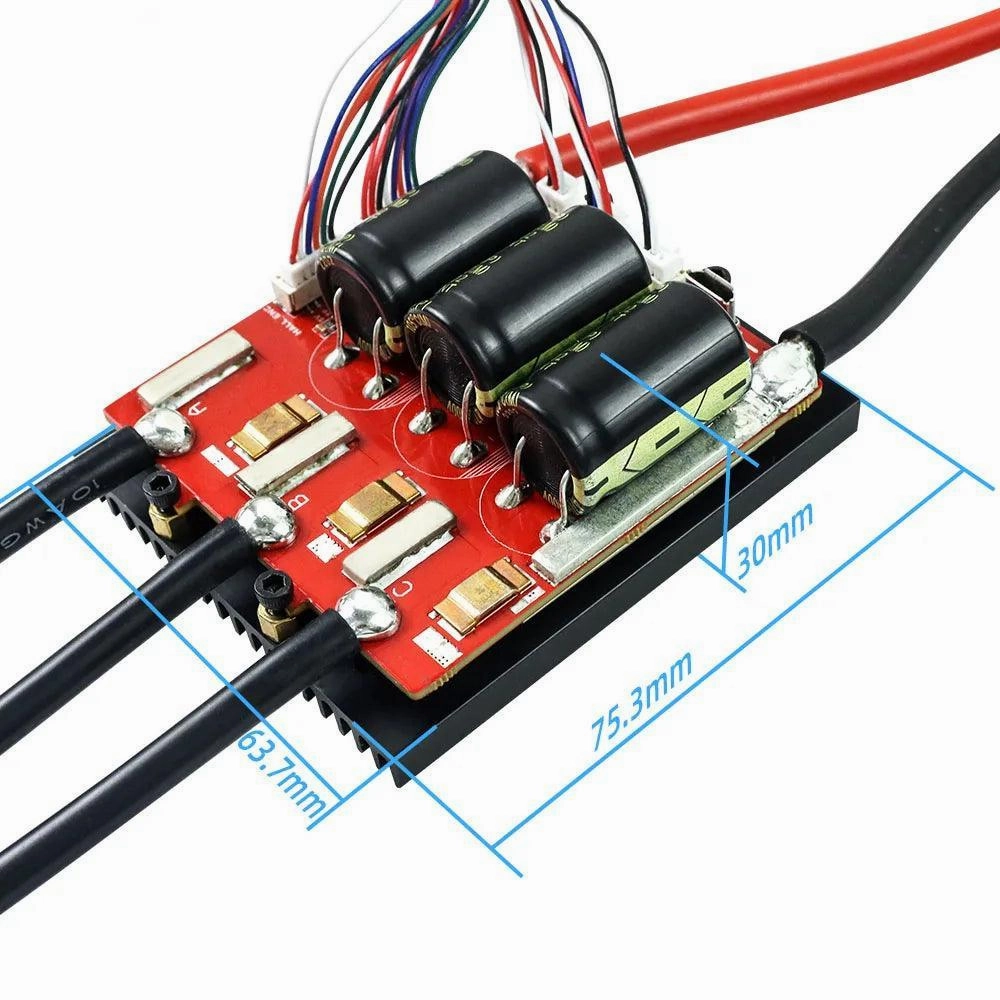

- Size:75.4x63.7x31.1mm(Including heatsink)
Feature:
- Support four control modes: Current/Dutycycle/Speed /Position control mode.

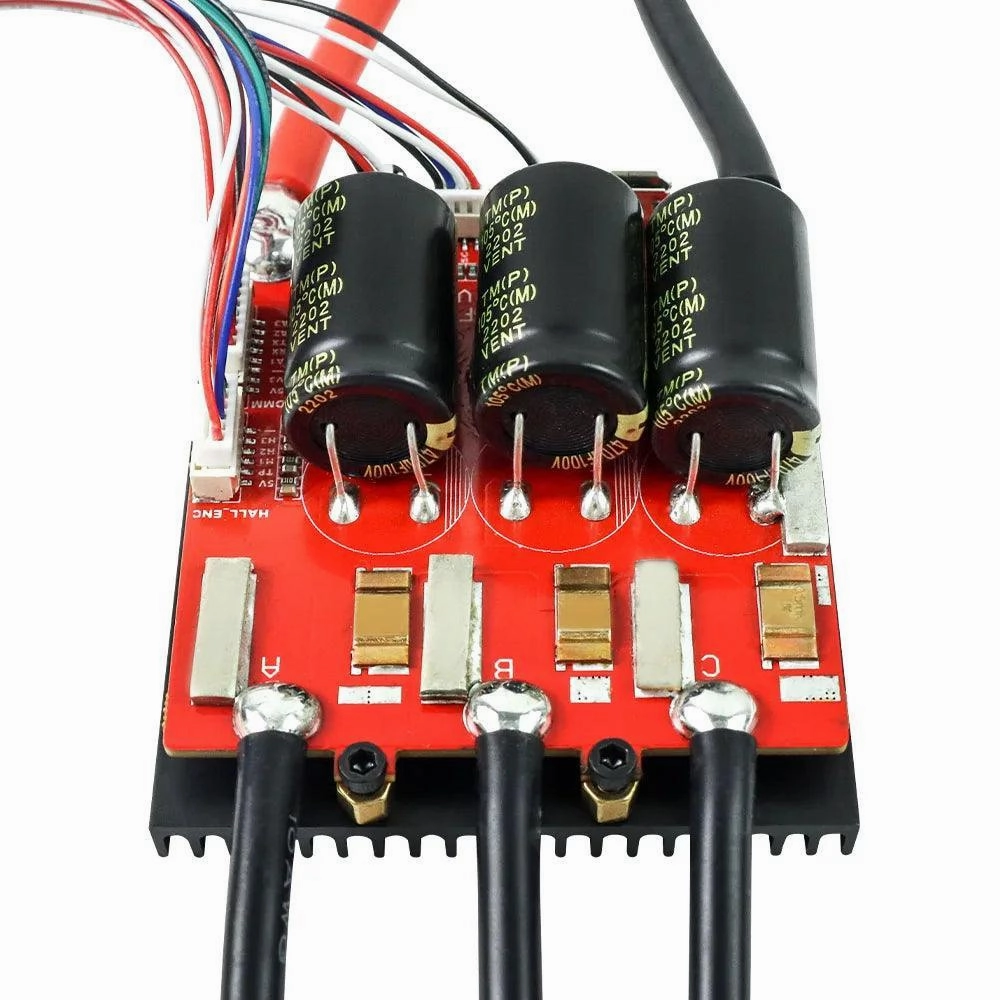

- Using 6pcs SFT01N10T high current MOSETS (100V 500A).
- Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
- Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
