- 【Spec】Integrated 10/100/1000Mbps Ethernet Transceiver. Auto-negotiation with auto MDI/MDI crossover correction. Support Parallel Detection. Auto Polarity Correction.
- 【Efficience】Support IEEE P802.3az Energy Efficient Ethernet, Power-down Mode.
- 【Interface】Support 3 programmable LAN status LEDs, RGMII to MAC.
- 【Power】3.3V/1.2V power supply and multi-voltage I/O 3.3V to 2.5V.
- 【Package】48-pin QFN

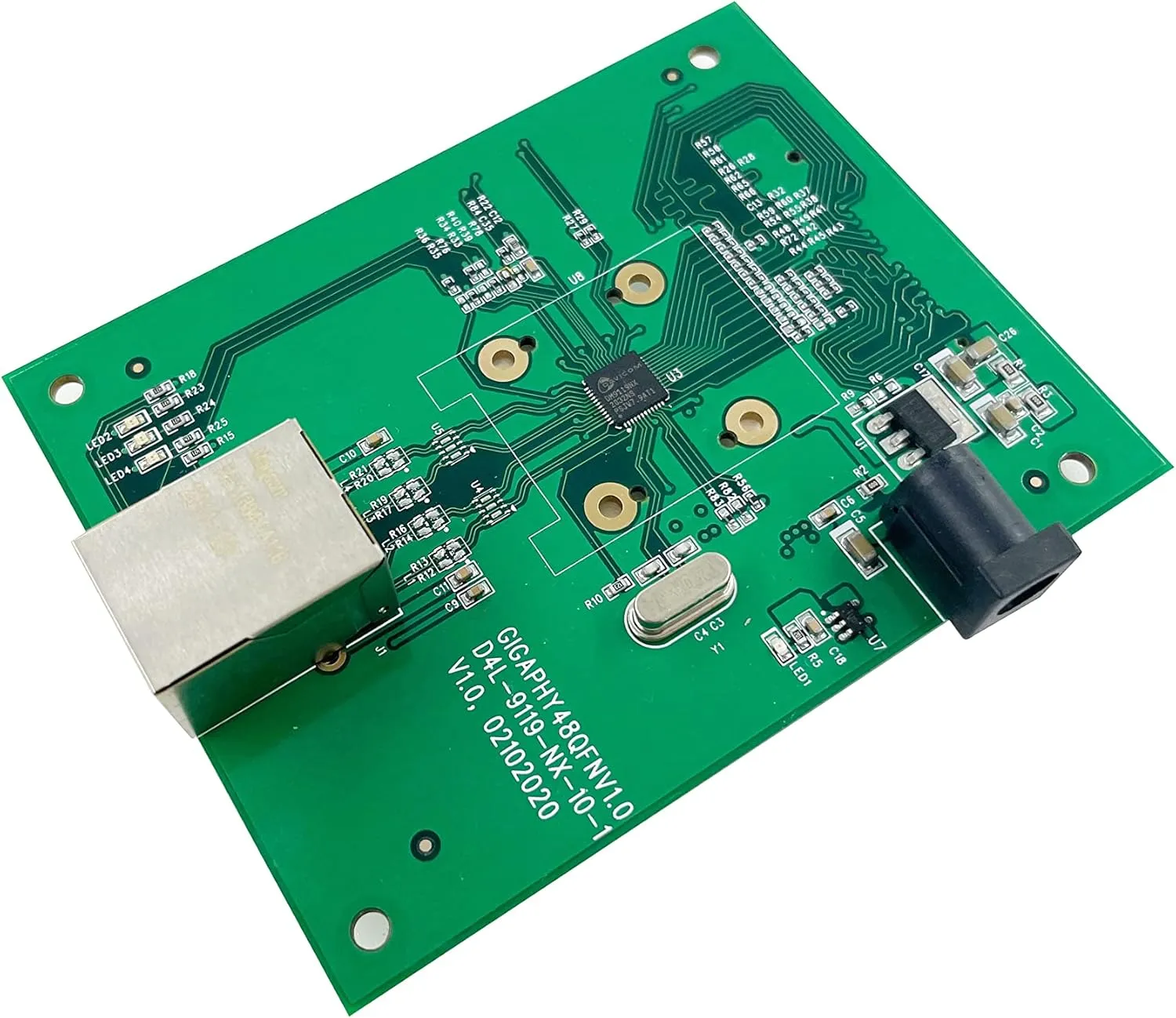

Davicom Semiconductor DM9119 EVB
Davicom Semiconductor DM9119 EVB is used to evaluate DM9119 Gigabit Ethernet PHY.
The board comes with a RGMII female place on bottom to connect with the CPU platform for developing Gigabit Ethernet.
The board takes advantage of IEEE 802.3AZ Energy Efficient Ethernet and Power-down mode as well as Wake-on-LAN power management to optimize power consumption.
The DM9119 is a single-chip Gigabit Ethernet Transceiver, which is compliant with IEEE 802.3 Media Access Controller and IEEE 802.3u 1000BASE-T/100BASE-TX/10BASE-T. It also supports IEEE 802.3az, Energy Efficient Ethernet (EEE).
The advanced on-chip mixed signal processing such as equalization, crosstalk cancellation, clock recovery, error correction, crossover detection/correction, and polarity correction provides robust transmission.
The RMII timing adjustment features remove the necessity for the delay between DM9119 and the link partner.
ESD: HMB 6KV
The DM9119 supports the Reduced Gigabit Media Independent Interface (RGMII) to the MAC controller.
Applications：
*High-definition digital signage, public information display.
*Network Interface Adapter.
*Surveillance Camera.
*Game machine.
*Embedded System.
