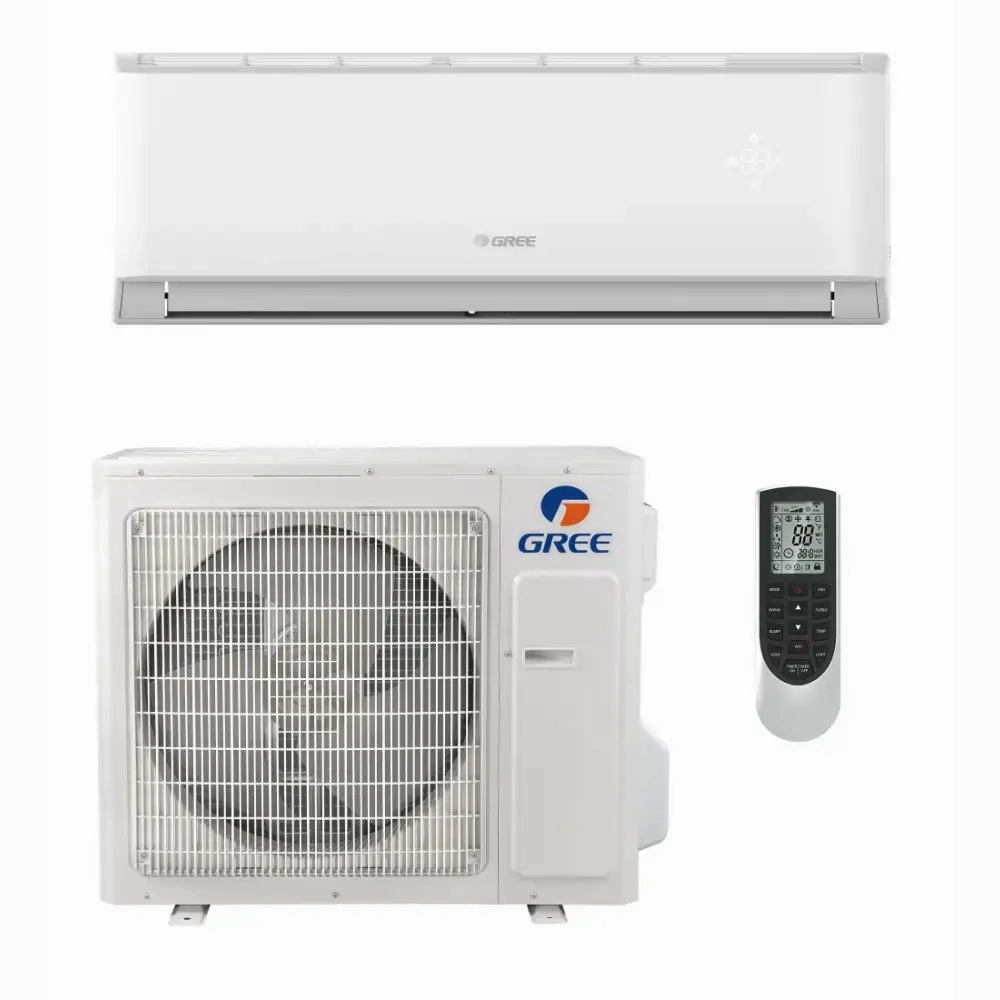

GREE Livo Gen4 9K BTU 19.5 SEER2 Wall Mount Mini-Split Single Zone Heat Pump
The 4LIV09HP230V1AH / 4LIV09HP230V1AO single-zone system is one of Gree’s new 3rd generation of Livo mini splits designed to provide a convenient, efficient method to cool and heat a room.
FACTS
- Designed to heat and cool a small room
- 9,000 BTU, 19.5 SEER2
- 230v electrical compatible
- Heating, Cooling, Auto, Dry, and Fan modes
Introducing the Gree Livo Gen4: 9,000 BTU, 19.5 SEER2
- This system offers high efficiency and quiet comfort, with advanced features like Gree's G10 Inverter and variable compressor technology for faster and consistent temperature control. It comes with multiple fan speeds, sleep mode for uninterrupted rest, and a convenient hidden backlight display. The included remote control features a programmable timer and I Feel mode.
Warranty
- The residential warranty is 5 years for parts and compressor, extendable to 10 years when installed by a Gree Select Dealer within 60 days. Commercial installations have a 1-year parts and 5-year compressor warranty. Controls are covered for 90 days from purchase.
Durability and Reliability
- The Livo Gen4 is designed to withstand harsh conditions, with a basepan heater to prevent ice buildup and an anti-corrosion coating for long-lasting performance. It also has error code display for easy troubleshooting.
Smart Features
- Enjoy pre-heating and defrosting functions, power failure recovery, and optional wireless control via the Gree app for mobile phones (adapter sold separately).
Specifications
| SKU | 4LIV09HP230V1AH / 4LIV09HP230V1AO |
|---|---|
| Refrigerant Charge | Pre-Charged For: 25' |
| Weight (in lbs) | 88.000000 |
| AHRI Certificate Number | 210278963 |
| Brand/Manufacturer | Gree |
| Controller | Wireless Included |
| Included Items | Remote Controller |
| Additional Information | Heat Pump |
| Additional Information | Maximum Line Set Length: 49' |
| Additional Information | Minimum Line Set Length: 10' |
| Additional Information | Drain: 5/8" |
| Additional Information | I Feel Mode Enabled |
| Additional Information | Self-Diagnostics |
| Additional Information | Blue Fin Coated Condenser |
| HSPF2 | 8.8 |
| Cooling BTU | 9,100 BTU |
| Heating BTU | 10,000 BTU |
| Maximum CFM | 159 - 353 CFM |
| Decibel Level (dBA) | Indoor Unit: 26-41 dB(A) | Outdoor Unit: 51 dB(A) |
| Energy Star | No |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 0.21 gal/hr |
| SEER2 (Efficiency) | 19.5 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 10 Amps |
| Amperage Requirement | 15A |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini-Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | -13° - 75° |
| Min/Max Outdoor Temp for Cooling | 0° - 115° |
| Zone Compatibility | Single Zone |
| Height | Indoor Unit: 10-3/4" | Outdoor Unit: 21-1/4" |
| Width | Indoor Unit: 31-1/8" | Outdoor Unit: 28" |
| Depth | Indoor Unit: 10-1/8" | Outdoor Unit: 10-1/8" |
| Additional Info | Indoor Unit Weight: 19.8 lbs | Outdoor Unit Weight: 54.8 lbs |
| Warranty | 5 Year Limited Parts Warranty |
