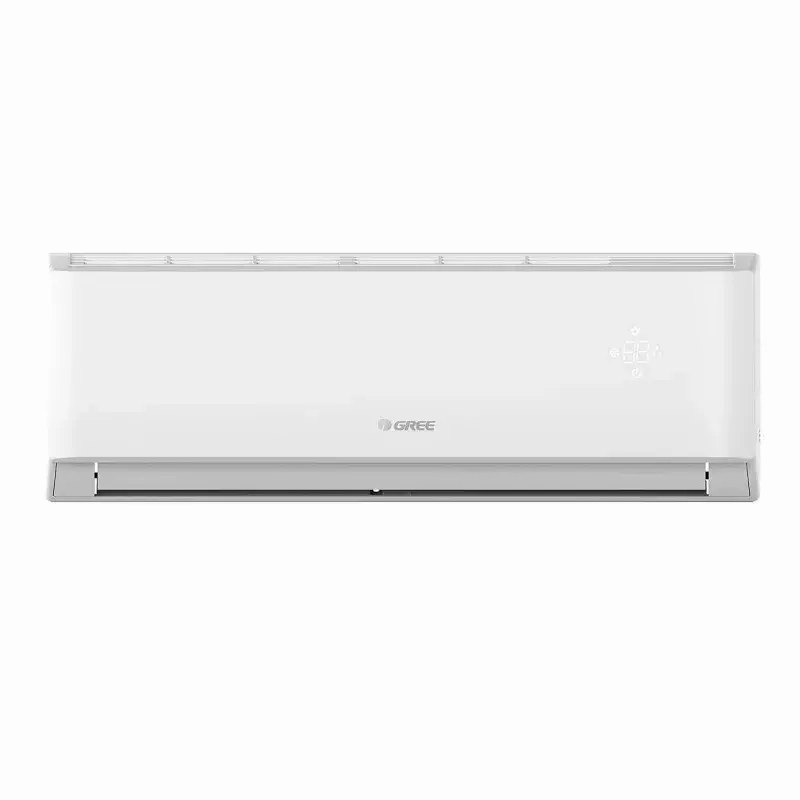

GREE Livo SEER2 Gen4 24K BTU Wall Mount Mini-Split Single Zone Air Handler
The 4LIV24HP230V1AH is a 24,000 BTU variable speed air handler from Gree. It is designed for use with 230V systems and features a DC inverter compressor for efficient operation. The air handler also has a compact and quiet design, making it ideal for residential and commercial applications.
Features
- 24,000 BTU
- Designed to heat and cool a large room
- Heating, Cooling, Auto, Dry, and Fan modes
- DC inverter compressor for efficient operation
24,000 BTU Single Zone or Multi Zone Indoor Unit
The Gree Livo Gen4 system provides high efficiency and quiet comfort. It is both quieter and simultaneously delivers more air than the previous Livo and Lio generations. Maintenance is easy thanks to the self-diagnostics tool.
The Livo Gen4 features multiple fan speeds for your comfort. The indoor unit's sleep mode ensures that temperature fluctuations don't disturb your sleep. It also features a hidden backlight display on the unit which will inform you of the temperature and different modes running. A handheld remote control is included with this unit and features a programmable timer and I Feel mode, which senses temperature around the remote to adjust airflow and indoor temperature.
Warranty
The 4LIV24HP230V1AH comes with Gree’s standard 5 year parts and 5 year compressor warranty when registered and installed in a residential application. The warranty is reduced to 1 year parts and 5 year compressor when installed in a commercial application. Controls are warrantied for 90 days from the purchase date.
If installed by a Gree Select Dealer, the residential warranty may be extended to 10 years on parts and 10 years on the compressor when registered within 60 days of installation.
Smart Features
The Livo Gen4 system includes intelligent pre-heating and defrosting to prevent cold air from blowing inside while the unit is in heating mode. The system includes power failure recovery to resume function automatically after a power outage. A wireless adapter (sold separately) can be added to the indoor unit to provide control over the system from anywhere via the Gree app for mobile phones.
Specs
| SKU | 4LIV24HP230V1AH |
|---|---|
| Weight (in lbs) | 45.200000 |
| Brand/Manufacturer | Gree |
| Controller | Wireless Included |
| Additional Information | Drain: 5/8" |
| Cooling BTU | n24,000 | n
| Heating BTU | n24,000 | n
| Maximum CFM | n412 - 677 CFM | n
| Decibel Level (dBA) | n36 - 51 dB(A) | n
| Refrigerant | nR410A | n
| Capacity | nDehumidification Rate: 5.28 pt/hr | n
| Liquid Line | nliquid_line=1/4" |
| Suction Line | suction_line=5/8" | n
| Electrical | n208/230V 1 Phase 60Hz | n
| Phase | nSingle Phase | n
| BTU/Tonnage | n24,000 BTU/2 Ton | n
| Mini-Split Type | nWall Mounted | n
| Zone Compatibility | nSingle Zone | n
| Height | n13-1/8" |
| Width | 42-7/16" | n
| Depth | n9-11/16" |
| Warranty | 5 year Limited Parts Warranty |
