Product Information

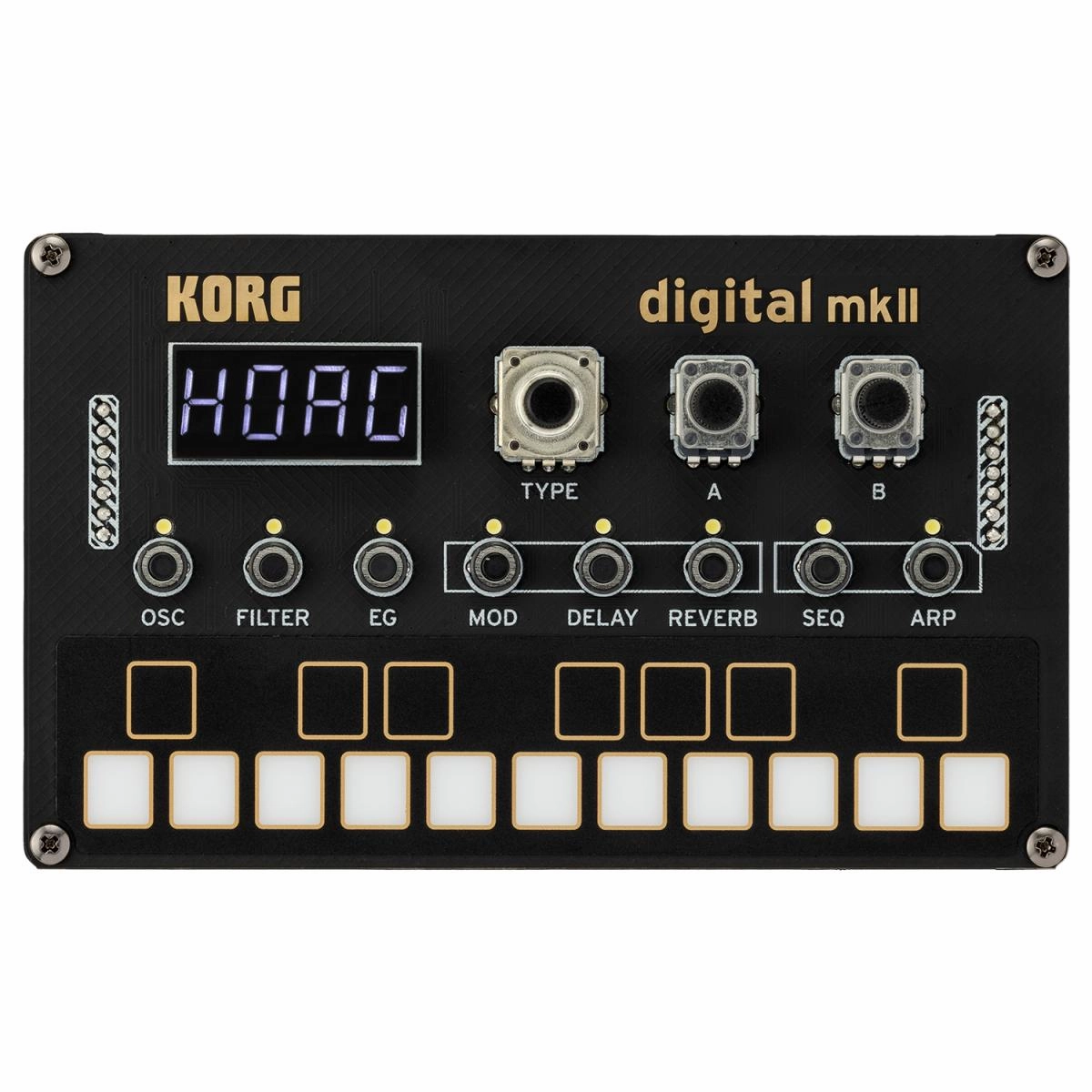

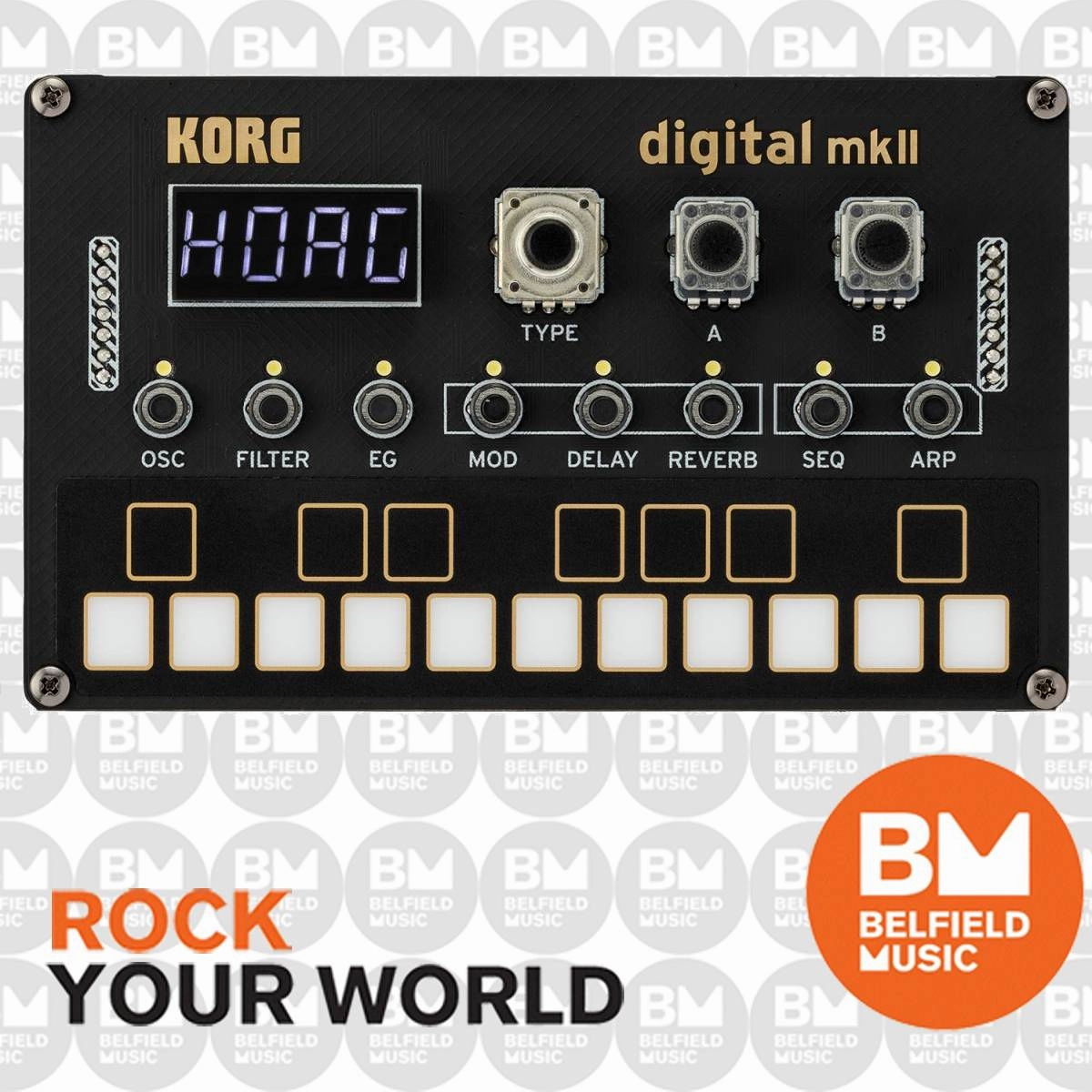

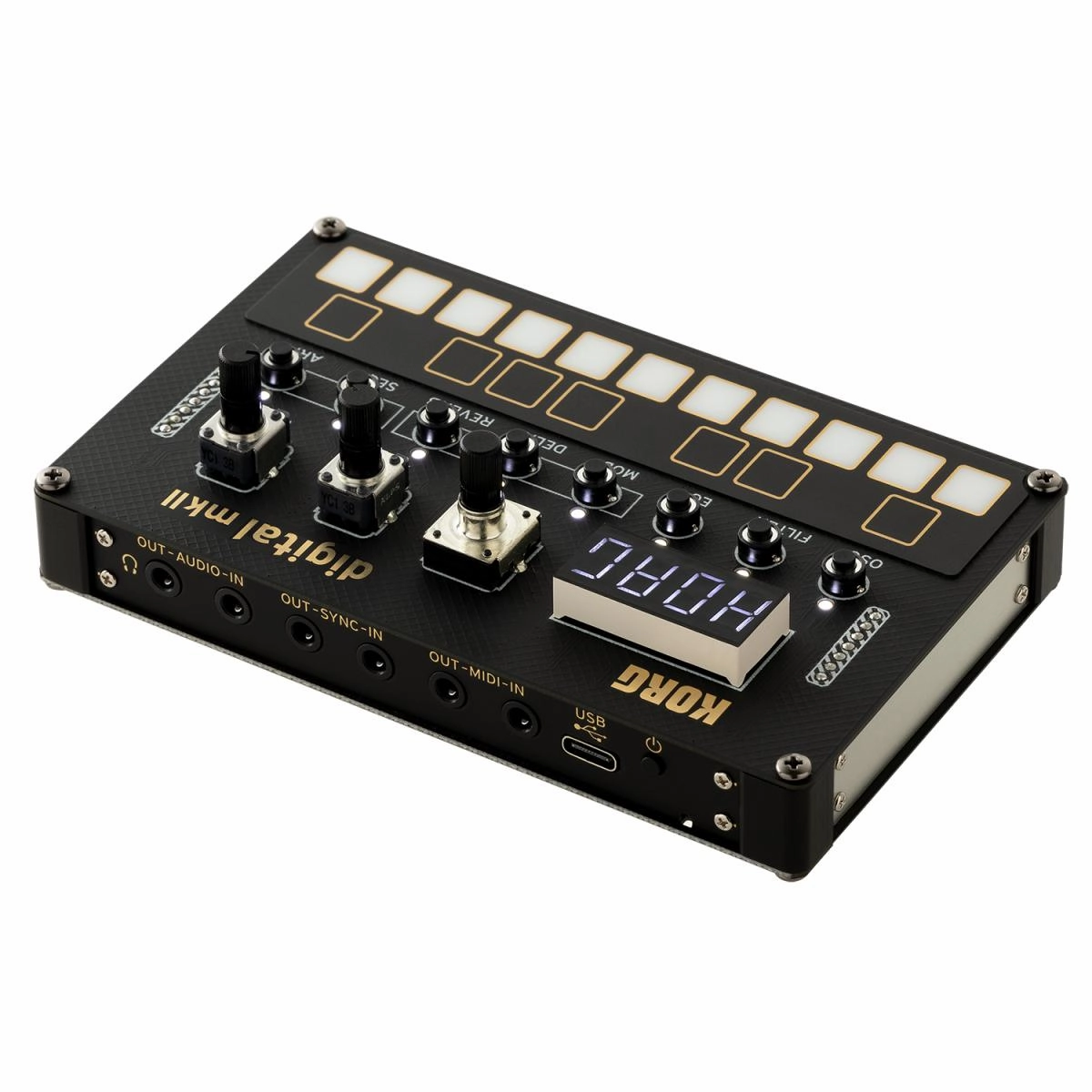

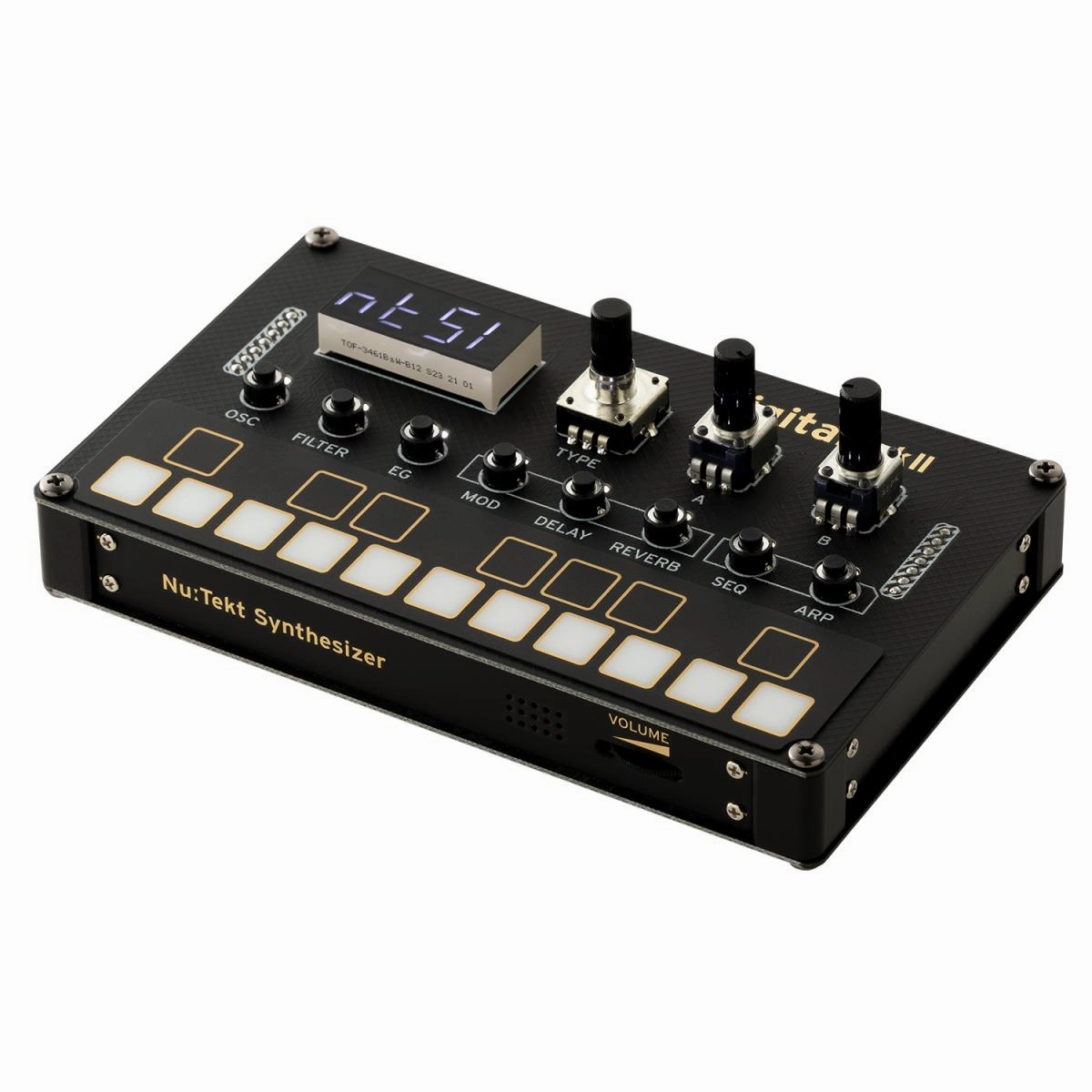

The compact and incredibly powerful NTS-1 is back with an array of new features, a refreshed interface and more customization options than ever before.

Boasting a new keyboard, built-in sequencer, fresh sounds, and expanded MIDI capabilities, the NTS-1 mkII packs a gigantic set of features in the palm of your hand.

Powered by an even more powerful processor than its predecessor, the NTS-1 mkII unlocks its full potential and welcomes a new wave of custom content through its upgraded logueSDK.

This DIY synth and effects unit is not just powerful but also versatile, a must-have tool for both studio and stage.

Features

The NTS-1 mkII boasts a new 18-key multitouch keyboard, substituting the ribbon controller of the first generation, for precise playing and sequencing. This upgrade unlocks the ability to send MIDI note messages polyphonically, opening the doors to custom oscillators and effects leveraging the paraphonic potential of the NTS-1.

NTS-1 mkII is an extremely powerful, flexible and fun-to-explore synth. While retaining the versatile features of its predecessor, this new iteration adds an array of new sounds, including new oscillator types and modulation possibilities, using its Audio IN signal as a modulation source to create FM, AM or RING sounds.

The NTS-1 mkII is also an incredibly capable and expandable FX unit. In the mkII, we added many new Modulation (distortion, fuzz…), Delay (tape delay, BPM synced delays…) and Reverb effects, as well as handy oscillator OFF and Filter THRU functions, making it a uniquely versatile piece of gear that will cover all your needs at home or on stage.

Specifications

Keyboard

• Multitouch keyboard

Sound Generator System

• 1 VCO
• 1 Multimode filter
• 1 EG
• 3 LFO

Effects

• MOD (CHORUS, ENSEMBLE, PHASER, FLANGER, SOFT CLIP, HARD CLIP, SINE FOLD, FUZZ)
• REVERB
• DELAY

Input/Output Jacks

• Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack)
• AUDIO IN jack (3.5 mm stereo mini-phone jack)
• SYNC OUT jack (3.5 mm TRS mini-phone jack, 3.3V output level)
• SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level)
• MIDI OUT jack (3.5 mm TRS mini-phone jack)
• MIDI IN jack (3.5 mm TRS mini-phone jack)
• USB port (Type-C)

Power Supply

• USB bus powered
• Current consumption: 500 mA or less

Dimensions

• 129 × 78 × 39 mm /5.08”×3.07”×1.54”

Weight

• 122 g/4.30 oz

Included Items

• USB cable
• Assembly Instructions
