- Accurate capacitor ESR meter, ohmmeter, tool that the capacitor test capacitor ESR value, to determine the capacitor is good or bad, convenient and direct.
- MEC-100 V1 automatic switch capacitance resistance (ESR) test. small resistance test meter. Measuring range from 0.001 to 100.0r, high accuracy 1%, support for on-board measurement.
- Resolution 0.001, large LCD display, support USB power adapter, DC 5V power adapter.
- Using a true 100 kHz sine wave to match the internal resistance of the capacitor (ESR) corresponds to the capacitor manufacturer test method.
- Can manually test the car range for ESR value High accuracy 1%, minimum test, resistance 1Ω You can directly test the component's capacitance resistance value on the board, to muck out the components from the board. 100 KHz the test is more accurate. Manually delete button, remove the error, to facilitate the accurate test for smaller valuables components. Mini USB interface DC 5 V to charge integrated lithium battery.

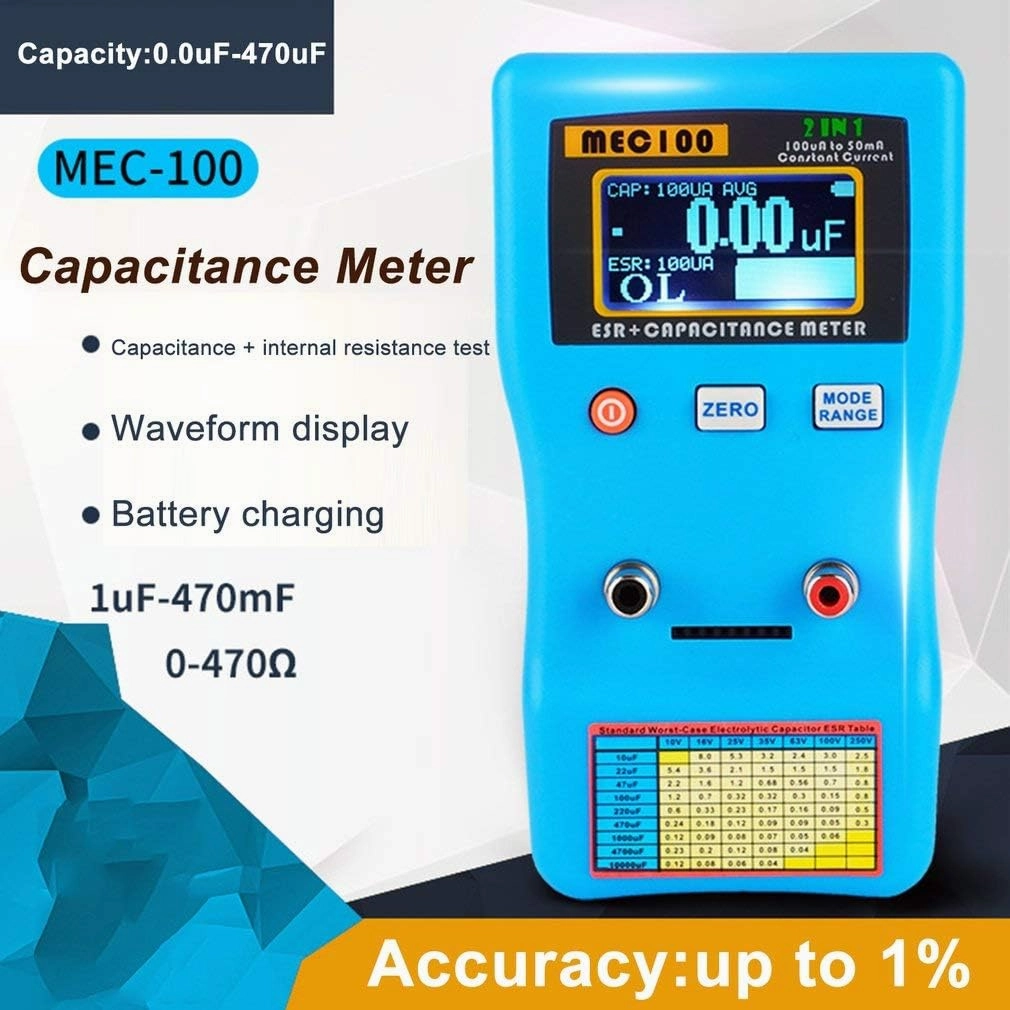

Model: MEC-100
Accuracy: up to 1%
Capacity: 0.0uF-470uF
Capacitance resistance: 0-470Ω
High resolution: 5 digits
Measuring voltage: <0.8
Clamping voltage: approx. 1.25v (open circuit voltage)
Built-in lithium battery: lithium battery is charged
External power: 5V micro USB port
Working current: 0.02A
Battery life:> 80 hours
Size: 145*80*25mm/5.7*3.1*1in
Weight: Approx.258g/9.1oz
Package list:
1 x MESR-100 resistor capacitor ESR meter
1 x USB cable
2 x Test clips
